Cone Crusher Machine

Cone Crusher

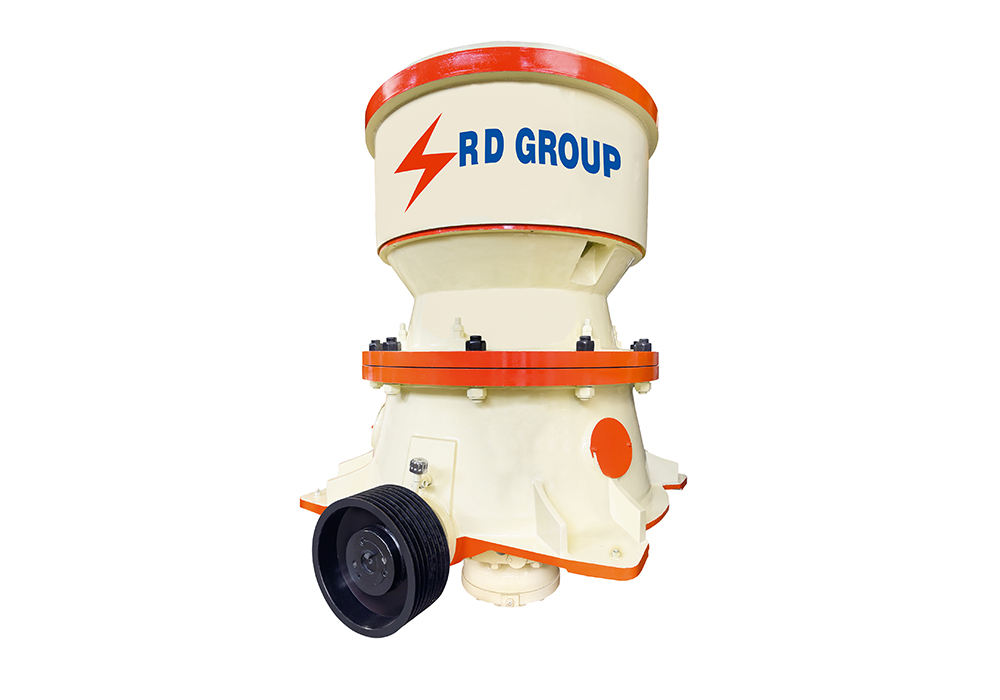

Cone Crusher Machine

The Cone Crusher is a high power crushing machine that is widely applicable in various industries like the mining, quarrying, and construction industries. The machine has been used widely in the industrial crushing process due to its capability of pulverating the hard and abrasive materials with precision.

RD Group deals with production and supply of high performance Cone Crushers which are intended to last decades with heavy duty performance. Our machines include cone crushers that render consistent outcomes to even your most challenging crushing requirements regardless of whether you want to engage granite, basalt or mineral ores.

Cone Crusher Machine

What is a Cone Crusher?

A Cone Crusher is a crusher that reduces materials of larger size into smaller ones using a rotating cone within a fixed bowl. It is crushing materials that are squeezed under the cone and the bowl liner.

How It Works:

  • A feed material is introduced into the cone at the top.
  • It is crushed on an outer fixed surface by the spinning cone.
  • Material leaves through the bottom in a crushed state.

The cone stone crusher machines perform better in both secondary and tertiary crushing as compared to Cone Crushers or impact crushers because:

  • Higher reduction ratios
  • Higher uniformity of the output size
  • Increased control of abrasive material

Technical Specification

AVERAGE CAPACITY IN Tons/hr. WITH CONE SETTING(CLOSED SETTING)
MODELS FEED OPENING (mm) FEED SIZE (mm) STROKE SIZE (mm) CHAMBER 24 26 28 30 34 38 42 46 50 MOTOR hp (kW) WEIGHT TON
RDCC100 145 120 16
20
26		 C
MC
EC		 50-60
50-60		 60-80
60-90
55-65		 90-110
70-110
75-112		 110-120
95-118
105-128		 100(75) 5.8 T
RDCC150 180 150 16
20
26		 C
MC
EC		 80-90 105-115
120-130		 120-130
145-155
185-195		 135-145
160-180
200-220		 145-165
170-200
210-230		 155-175
185-215		 150(110 ) 8.5 T
RDCC200 220 190 22
26
32		 C
MC
EC		 80-100 85-105 105-125
100-120 		120-145
130-150
160-180		 150-170
160-180
190-210		 170-190
180-210
210-230		 240(187) 10.7 T
RDCC250 230 200 22
26
32		 C
MC
EC		 105-125 120-145
160-180
190-210 		150-170
180-210
210-230		 170-190
200-230
240-270 		180-200
220-250
270-310 		200-220
250-280
280-320		 220-250
280-310
320-360 		270(200) 11.9 T
RDCC330 250 220 28
32
36		 C
MC
EC		 100-120
110-130		 110-130
120-150
150-170 		135-155
165-195
205-235		 160-180
195-225
245-275 		190-210
230-260
290-320 		240-260
300-330		 220-250
280-310
320-360 		300(250) 13.4 T
RDCC380 270 240 28
32
36		 C
MC
EC		 180-210 190-230
210-250
230-290		 210-255
220-270
260-300 		235-275
255-315
280-310 		255-315
290-345
300-340		 90-345
320-350
330-380
330-380
330-380

Key Features of Our Cone Crushers

We use the latest technology and highly skilled engineering that enables our industrial cone crushers to perform at the highest level.

The main features are:

  • Sturdy Building: Constructed of heavy duty steel with wear proof liners to provide long life.
  • High Crushing Capacity : It is available in a variety of models to process up to 500 TPH (tons per hour) depending upon the material and application.
  • High-technology Automation : Hydraulic setting adjustments and overload safe settings that facilitate smooth and safe operation.
  • Flexible Material Compatibility : Working efficiently on granite, river gravel, dolomite, iron ore and industrial wastes.
  • Easy Maintenance :Top-down to be able to do liner replacement quicker and loss of little timing.

Applications of Cone Crushers

The Cone Crushers are commonly applied in situations that often demand common and even aggregate sizes. The most important areas of application are:

  • Construction & Infrastructure :
    Applied in road base, building stone and concrete aggregates manufacture.
  • Mining & Mineral Processing :
    Single stage crushing of metallic and non-metallic ores such as gold, copper and iron.
  • Quarrying :
    Breaking up of large rocks into the saleable form of gravel and crushed stone.
  • Recycling:
    Recycling of industrial waste, construction debris and reusable aggregate.

Why Choose Our Cone Crushers? (R D Group Advantage)

We are not just a manufacturing company, we innovate. This is why worldwide industries have faith in our cone crushers:

  • Customised Based Design :
    Our RD department is in-house which is continuously working on developing efficiency in the designs and on the crushing technology.
  • Quality Assurance :
    The cones are crushers are extensively tested to be sure that they are sound, productions meet specifications, and that they are safe.
  • The Worldwide Supply Chain :
    We assist our clients worldwide with a trustworthy logistics and documents.
  • Customer Centric Support :
    Pre-sales consulting, installation support, availability of spare parts, and after sales part services which are exemplary.

Frequently Asked Questions (FAQs)

Cone Crushers are applicable to a variety of hard and medium-hard materials such as basalt, granite, limestone, dolomite, iron ore, slag.

Selection is based on the size of feed, output size needed, the hardness of material and the capacity required. The R D Group offers specific services according to your needs.

R D Cone Crushers can crush 50-500 TPH depending on the model.

Liners are regularly checked, as well as lubrication and hydraulic systems in order to provide optimal performance. We have designed a fast maintenance access.

It depends on the model, capacity and features. Get custom quote with R D Group and get the right offer to your needs.
