Mobile Crushing Plant is a piece of vital industrial equipment that allows the portability to be positioned at the construction site or in the mining field or the recycling center to crush a variety of material. In comparison to fixed crushers, mobile crushing plants offer unrivalled flexibility, productivity and ease of operation in the size reduction of raw materials.
R D Group is a one of the top manufacturer and supplier of mobile crushing plants in India, which offers the latest solutions to the mining and construction industries, and as well as the aggregate industries. Our mobile crusher machines are built with the latest technology features and top-of-the-range systems to work in most kinds of crushing applications and make them very efficient and reliable.

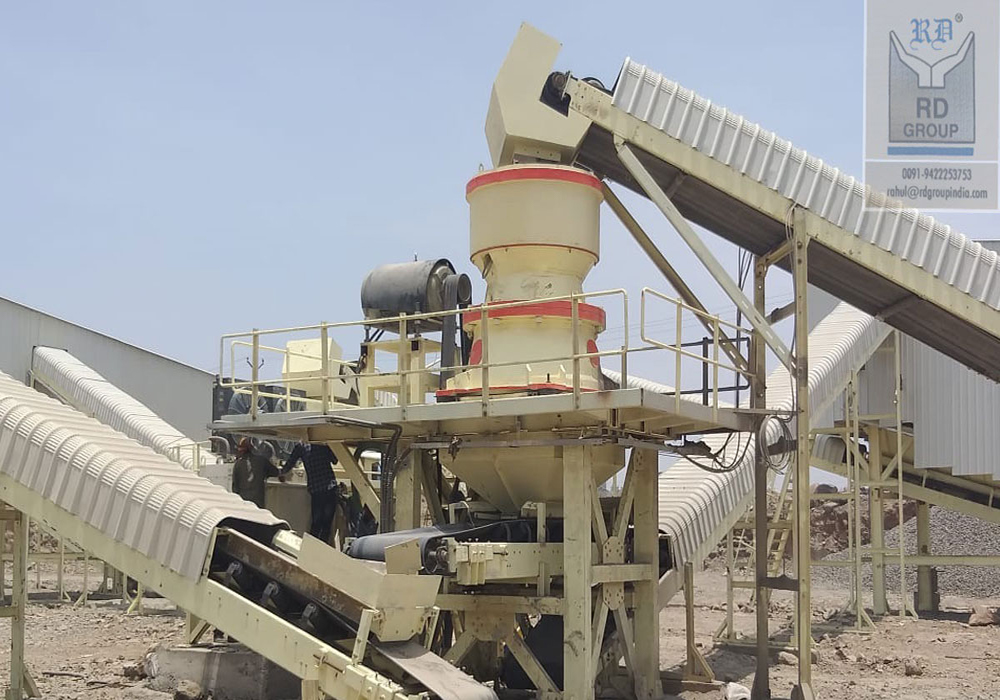

A mobile crushing plant consists of a crusher, a screening plant and a conveyor mounted on a mobile chassis. These mobile units are self-contained, can be transported between locations and deployed with little fuss and no need to construct a permanent setup.
The major elements are:
A mobile plant crusher, compared to stationary crushing setups, saves time and cost by not being required to move material, and by not taking up a fixed installation. Whether you know what is a mobile crushing plant or you want to invest into a mobile crushing plant, it is the ultimate answer to high-mobility and high-output crushing.
| RDMJC 150 | RDMJC 250 | ||
|---|---|---|---|
| MODELS | RDJC 3628 | RDJC 4432 | |
| FEED OPENING (L X W) | mm(inch) | 900x 700 (36 x 28) | 1100X800 (44 x 32) |
| FEED SIZE (MAX.) | mm | 600 | 700 |
| CSS RANGE | mm | 80 - 175 | 100 - 200 |
| *CAPACITY | TPH | 125 - 200 | 125 - 330 |
| CRUSHER WEIGHT | (Ton) | 17.2 T | 22.5 T |
| TOGGLE MECHANISM | Single Toggle Type | Single Toggle Type | |
| CONSTRUCTION | High Grade Carboon Steel With Welded Structure | High Grade Carboon Steel With Welded Structure | |
| FEEDER | |||
| MODEL | RDGF 1036 | RDGF 1236 | |
| TRAY DIMENSION (L X W) | mm | 1000 x 3600 | 1200 x 3600 |
| ELECTRICAL | |||
| MOTOR POWER | kW (hp) | 75 (100) | 110(150) |
| TOTAL POWER | kW (hp) | 90 (120) | 130(175) |
| DIMENSIONS | |||
| TRANSPORT (L X W X H) | mm | 13000x 3000 x 4750 | 13150 X 3000 X 4950 |
| TOTAL WEIGHT | (Ton) | 34 T | 42 T |
The mobile crushing plants are used in various industries because they are flexible, efficient and cost effective.
A mobile crushing plant is a mobile crushing machinre that directly crushes the raw materials on the spot such as rocks, ores, and construction wastes which are used in mining, infrastructure, and recycling activities.
A mobile crusher machine is fitted on either wheels or tracks and hence is moved on-site to on-site. It does not need permanent foundations and does not require numerous hauling movements as is the case with the stationary setups.
Mobile stone crushing plant: Ensures mobility, quicker operation, less transport, and can be operated in restricted spaces like the urban or remote regions.
yes, they can handle a variety of materials such as Stone Boulder, Basalt, granite, limestone, Iron Ore,Bauxite, etc. and thus they are flexible enough to handle mixed-site assignments.
Absolutely. The equipment of R D Group is designed with modularity and easy access components, which makes maintenance easy and downtime to be a minimal possibility.
