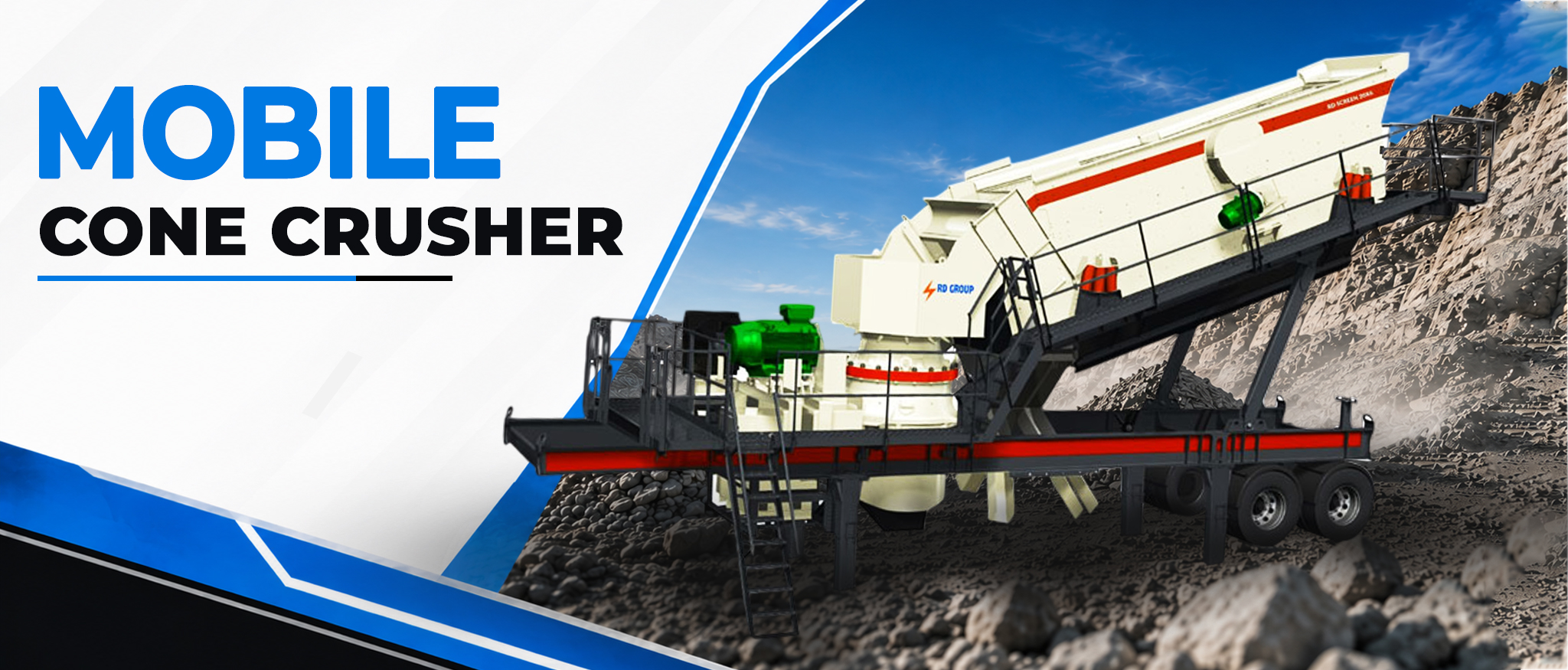

Cone Crusher along with Screen mounted on same Chassis
Mobile cone crusher manufacturers, suppliers, exporters in India. To meet the demands of easy re-location and faster setting up time, RD Group has built Mobile crushers. They are chassis mounted and with the attached automotive they can be easily towed from one location to another. RD Group offer both 2 stage and 3 stage crushing on mobile platforms with 200TPH, 250TPH and 330TPH combination respectively.
The stroke change feature allows crusher through-put to be easily adjusted to work in harmony with the rest of the crushing plant. The adjustable stroke also allows you to attain proper choke feed conditions and optimum crusher settings, ensuring the maximum yield of a required end product size.
RD Cone Crusher are versatile and with a cavity change the same crusher can be used as a secondary, tertiary, or quaternary application. Each model have a wide selection to optimize chamber designs to ensure perfect operation across any range of crushing operations.
| MODEL | RDC 100 | RDC 150 | RDC 200 | RDC 250 | RDC 330 | RDC 380 |
|---|---|---|---|---|---|---|
| TOTAL WEIGHT,KG* | 5800 | 7350 | 10700 | 11900" | 13400 | 16200 |
| MAX LIFT DURING MAINTENANCE, KG | 1600 | 2500 | 3000 | 3000 | 3200 | 5200 |
| DIMENSIONS | ||||||
| A | 2038 | 2383 | 2383 | 2383 | 2181 | 2586 |
| B | Ø 1300 | Ø 1300 | Ø 1649 | Ø 1649 | Ø 1860 | Ø 1860 |
| C | 908 | 908 | 1165 | 1165 | 1401 | 1401 |
| D | Ø 1320 | Ø 1320 | Ø 1700 | Ø 1700 | Ø 1820 | Ø 1820 |
| E | Ø 1040 | Ø 1360 | Ø 1400 | Ø 1500 | Ø 1480 | Ø 1686 |
| F | 566 | 566 | 449 | 449 | 499 | 499 |
| G | 1167 | 1442 | 1513 | 1520 | 1275 | 1582 |
| H | 1400 | 1400 | 1700 | 1700 | 1700 | 1700 |
| I | 1090 | 1090 | 1400 | 1400 | 1400 | 1400 |
| J**) | 2067 | 2416 | 2477 | 2520 | 2239 | 2550 |
| J***) | 2250 | 2600 | 2660 | 2700 | 2920 | 3230 |
| MOTOR SIZE, KW | 75-90 | 75-90 | 132-160 | 132-160 | 200-250 | 132-250 |
| STROKE OPTIONS | 16,20,25 | 16,20,25 | 20,25,30 | 20,25,30 | 25,28,32,36,40 | 18,25,28,32,36,40 |
