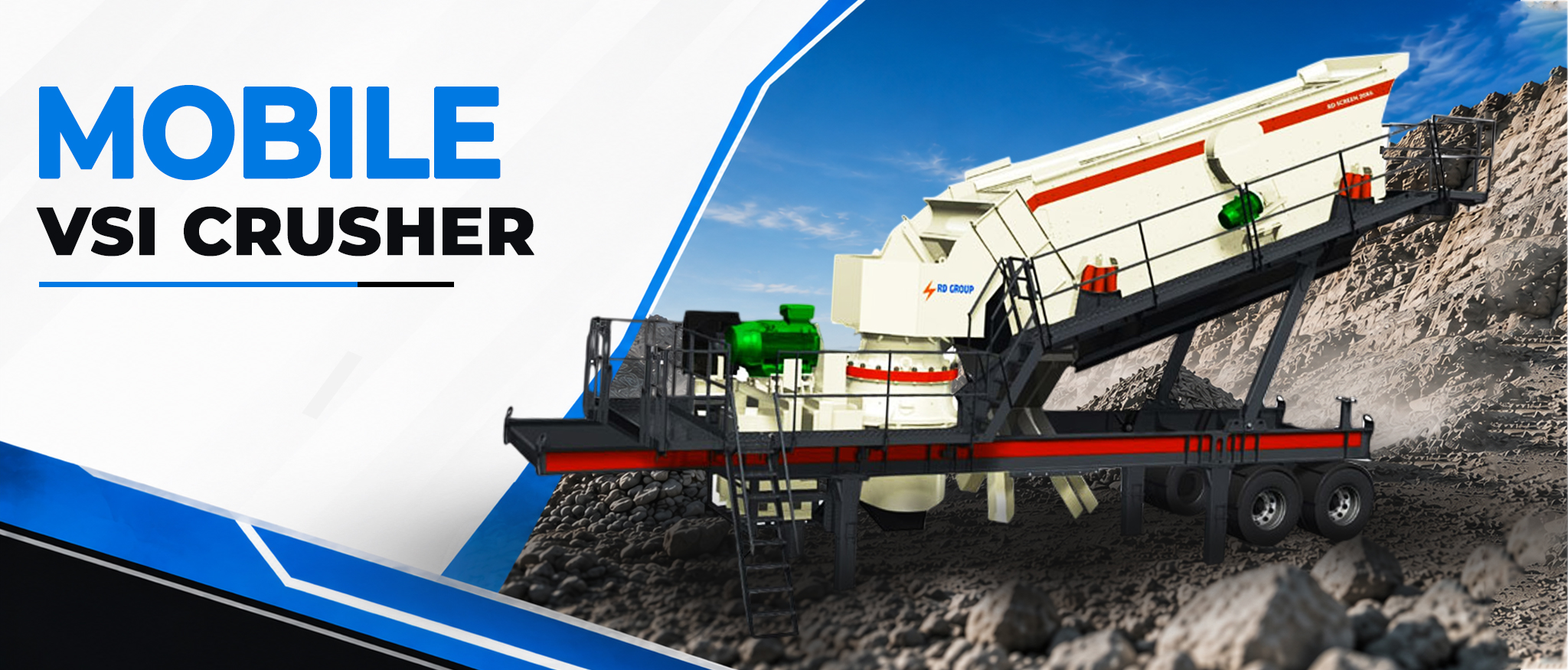

VSI Crusher along with Screen mounted on Same Chassis
To meet the demands of easy re-location and faster setting up time, RD Group has built Mobile crushers. They are chassis mounted and with the attached automotive they can be easily towed from one location to another. RD Group offer both 2 stage and 3 stage crushing on mobile platforms with 200TPH, 250TPH and 330TPH combination respectively.
Accepts any type of feed.
Low service and maintenance requirements along with minimum operating and wear costs.
Quick and easy installation.
Superior cubical shape.
Widest range of models available to suit any capacity in tertiary or quaternary applications.
Economical capital cost.
Rock-on-rock technology minimises wear part requirements.
Ability to control product grading, maximising or minimising fines production.
Simple, reliable grease lubrication.
| MODELS | FEED | CAPACITY | POWER | RPM | DRIVE |
|---|---|---|---|---|---|
| ROR 50 | 20 | 25 | 50HP | 1000 - 22000 | SINGLE |
| ROR 100 | 32 | 105 | 100HP | 1000 - 22000 | SINGLE |
| ROR 150 | 32 | 150 | 150HP | 1000 - 1800 | SINGLE |
| ROR 200 | 35/38 | 200 | 120HP X 2 | 1000 - 1400 | DUAL |
| ROR 250 | 40 | 250 | 150HP X 2 | 1000 - 1400 | DUAL |
| ROR 300 | 45 | 300 | 180HP X 2/300 HP | 1000 - 1400 | SINGLE/DUAL |
| ROR 330 | 45 | 330 | 215HP X 2 | 1000 - 1400 | DUAL |
| ROR 370 | 45 | 400 | 240HP X 2 | 1000 - 1400 | DUAL |
| ROR 440 | 45 | 500 | 300HP X 2 | 1000 - 1400 | DUAL |
