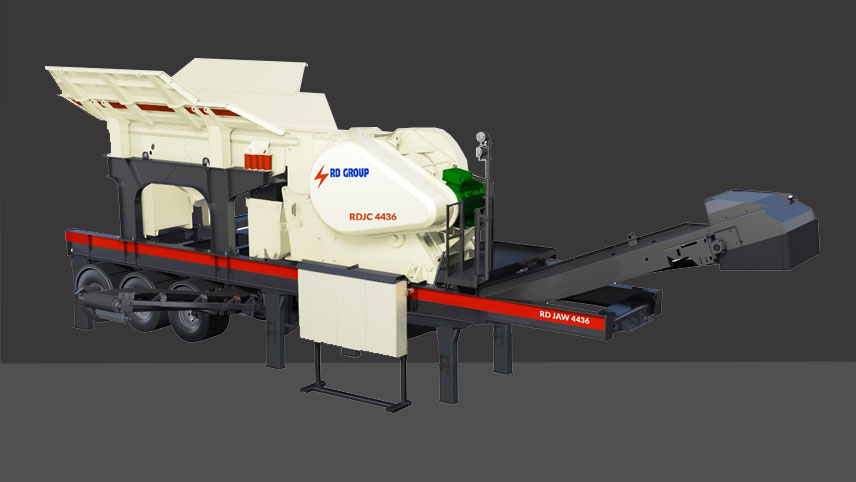

Extended Hopper with Grizzly Feeder and Jaw Crusher
To meet the demands of easy re-location and faster setting up time, RD Group has built Mobile crushers. They are chassis mounted and with the attached automotive they can be easily towed from one location to another. RD Group offer both 2 stage and 3 stage crushing on mobile platforms with 200TPH,250TPH and 330TPH combination respectively.
The RD Jaw Crusher is a single toggle jaw crusher, delineated by focusing on detail in every aspect i.e. designing and manufacturing. We have consolidated the best of the orthodox practices and applied the benefits of the latest technology.
All our jaw crushers are of the single toggle type, with a deep, symmetrical crushing chamber and easy setting adjustment. Each model has a large feed opening for its size and an optimized nip angle, giving smooth material flow, high reduction efficiency and high capacity. Behind the simple design are many advanced features that ensure easy operation and maintenance, long life & a low cost per ton.
RD Jaw Crusher’s wear parts are calibrated to give high performance and lowest operating costs. Highest quality material and impeccable design ensure best quality parts. High grade M7 range of Jaw plates are used in the law Crusher
High capacity
High reduction
Low jaw plate wearing pattern
Large feed acceptance capability
| Jaw Crusher | Average Capacity in Tons/Hr, with Jaw Setting(Closed Setting) | HP | RPM | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Inches | 1" | 1 1/2" | 2" | 2 1/2" | 3" | 3 1/2" | 4" | 5" | 6" | 7" | 8" | |||
| MM | 25 | 38 | 50 | 63 | 75 | 90 | 100 | 125 | 150 | 175 | 200 | |||
| 24" X 12" | 610 X 305 | 28" | 33" | 43" | 48" | 55" | 62" | - | - | - | - | - | 50 | 60 | 24" X 15" | 610 X 381 | - | 40 | 45 | 53 | 60 | 70 | - | - | - | - | - | 50 | 280 |
| 30" X 15" | 762" X 381" | - | - | 50 | 63 | 70 | 80 | 88 | - | - | - | - | 50 | 280 |
| 30" X 20" | 762" X 508" | - | - | - | 68 | 72 | 80 | 98 | - | - | - | - | 60 | 280 |
| 36" X 24" | 914" X 610" | - | - | - | - | - | 80 | 90 | 125 | 140 | 175 | 200 | 100 | 280 |
| 36" X 28" | 914" X 711" | - | - | - | - | - | 115 | 140 | 165 | 190 | 215 | 240 | 100 | 280 |
| 42" X 32" | 1067" X 813" | - | - | - | - | - | 125 | 150 | 175 | 200 | 250 | 275 | 125 | 280 |
| 44" X 32" | 1118" X 813" | - | - | - | - | - | - | 165 | 190 | 230 | 280 | 330 | 150 | 280 |
| 42" X 36" | 1067" X 914" | - | - | - | - | - | - | 175 | 200 | 250 | 300 | 350 | 150 | 280 |
| 44" X 36" | 118" X 914" | - | - | - | - | - | - | 200 | 225 | 275 | 330 | 375 | 200 | 280 |
